2021 باوربلس D155B-II
رقم التعريف
٤٤٦٨٥١
2021 باوربلس D155B-II
السنة
٢٠٢١
حالة المعدة
جديد
١
من
١٢
نظرة عامة
الوصف
Rated power - 345 hp
Operating weight - 38 000 kg
Blade capacity - 10.8 m³

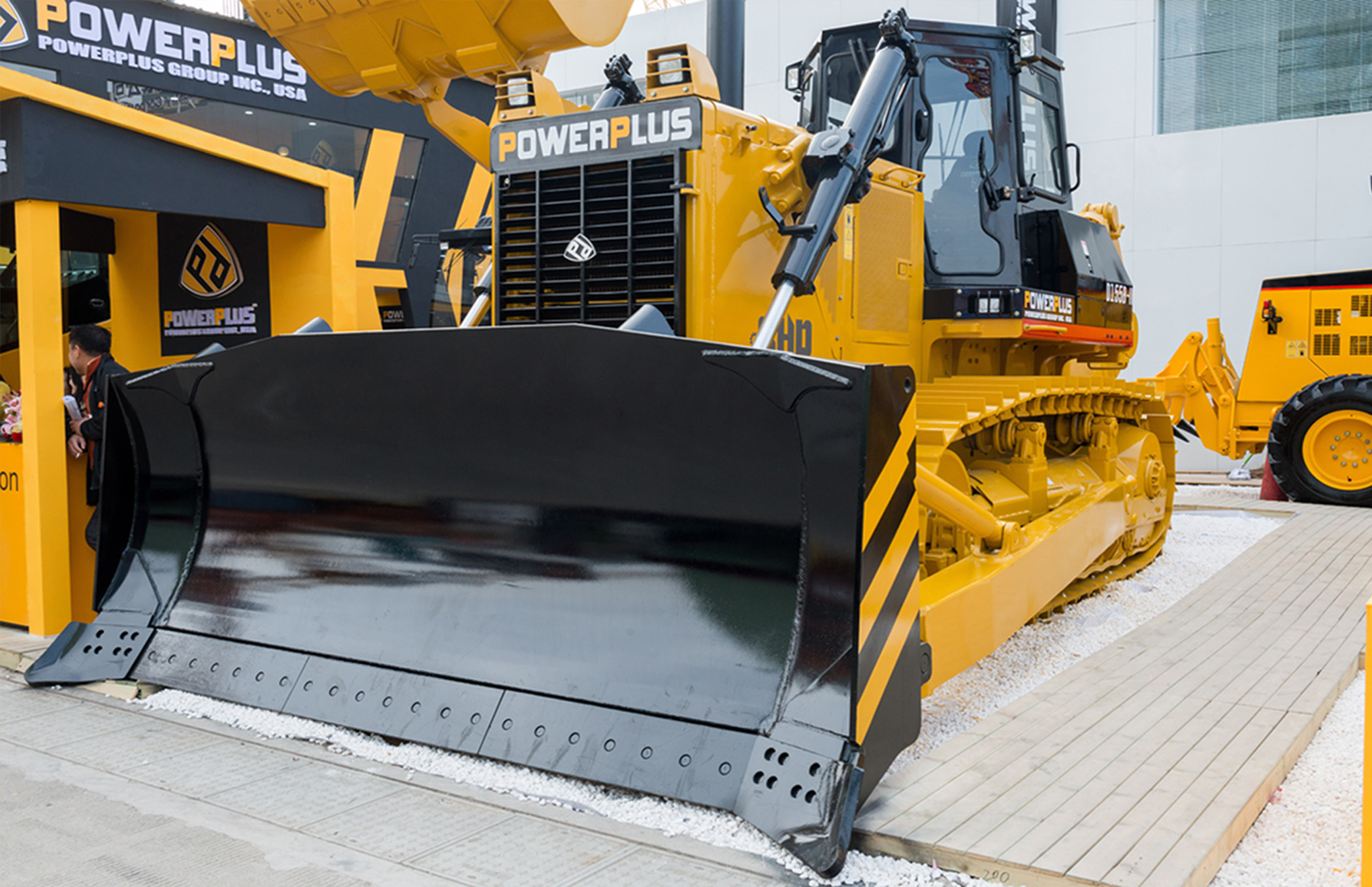

Bulldozer D155B-II directly from the manufacturer!
Manufactured deploying best Japanese technologies. Equipped with high-quality components from well-known brands.
The best solution for the earthmoving operations in the construction industry and for the coal/copper mining.
Range of working equipment to support various operational needs: semi-U, U, environmental, coal blades; winch; ROPS/FOPS cabin; single shank and multi shank rippers.
Serve as the best value for money.
Main technical specifications:
ENGINE: CUMMINS NTA855-C360S10
4-stroke cycle, turbocharged, intercooled, in-line.
Rated power - 345hp
Fuel consumption - 245g / kW.h (160g / hp.h)
Emission rating - Euro II
TRANSMISSION:
Power-shift, planetary gear, multiple-disc clutch, hydraulically forced lubrication driven by gear.
Final drive - 2-stage spur gear speed reduction, splash lubrication.
3 forward and 3 reverse speed.
UNDERCARRIAGE SYSTEM
Suspension - Oscillation-type with equalizer bar and forward-mounted pivot shafts
No. of carrier rollers - 2 (each side)
No. of track rollers - 7 (each side)
No. of idler - 1 (each side)
No. of track shoes - 41 (each side)
Track shoe type - Single grouser
Pitch - 228.6 mm
Width - 560 mm
Ground clearance - 500 mm
Ground pressure - 0.105 MPa
Gradeability - 30°
Min. turning radius - 3.9 m
WORKING EQUIPMENT AND ATTACHMENT
Straight-tilt dozer - Hydraulically-actuated with servo valve
Blade support - Brace type with tilt cylinder on the right side
Width - 4130 mm
Height - 1590 mm
Blade capacity - 10.8 m³
Max. lift above ground - 1560 mm
Max. drop below ground - 560 mm
Max. tilt adjustment - 1000 mm
Blade weight - 4520 kg
DIMENSIONS:
Overall length (with ripper) - 8650 mm
Overall length (with blade) - 6880 mm
Length of track on the ground - 3150 mm
Overall height - 3725 mm
Overall width (without trunnions) - 2780 mm
Track gauge - 2140 mm
Blade width - 4130 mm
Blade height - 1720 mm
For more information please contact us.
