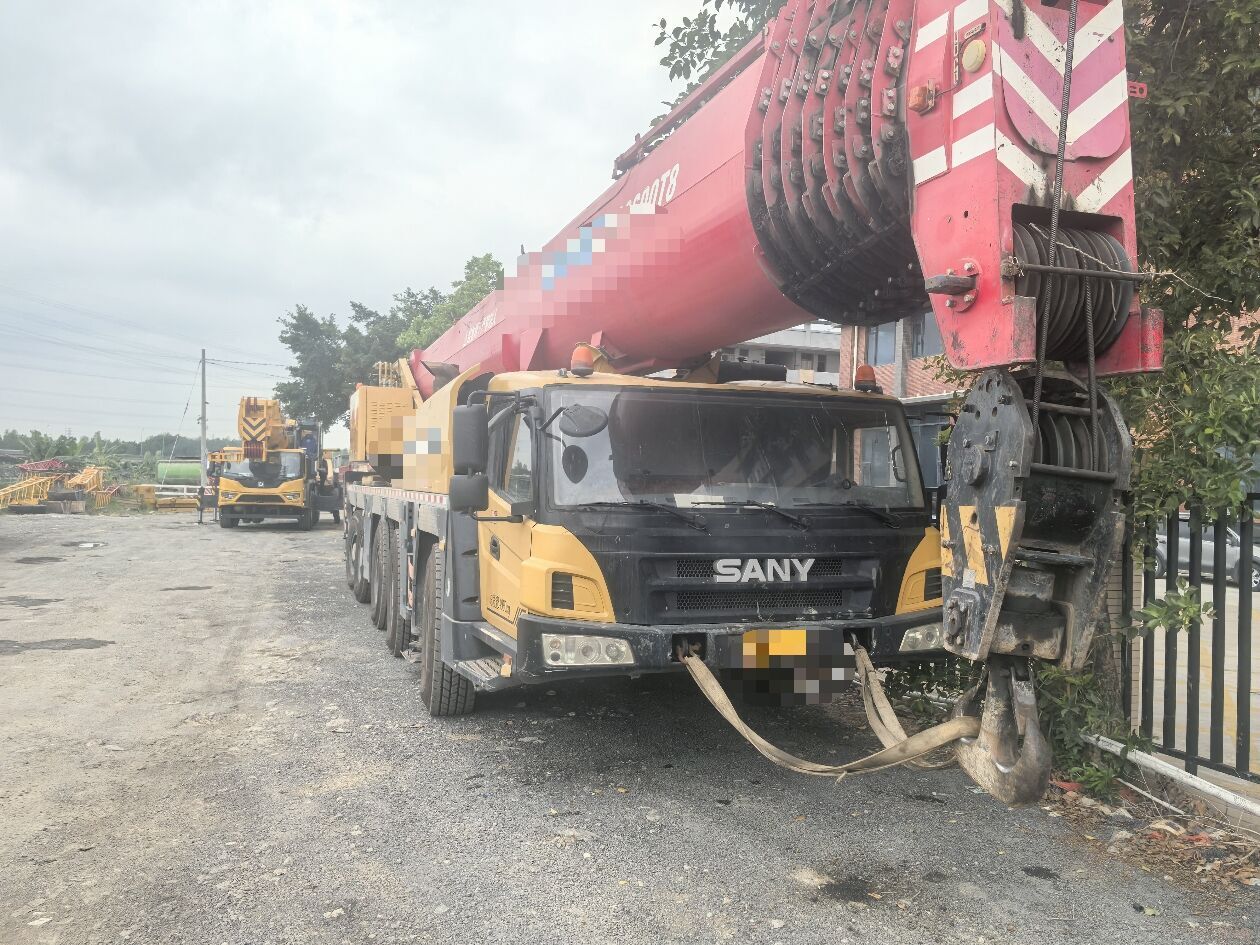

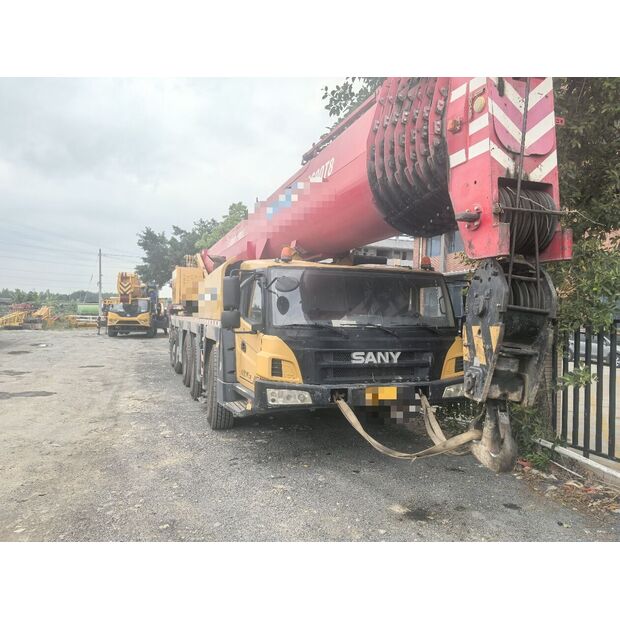

2021 ساني SAC1600T8
نظرة عامة
الإبلاغ عن مشكلة مع الإعلان
إرشادات السلامة
الوصف
Sany SAC1600T8
Speed: 80
Vat: 17

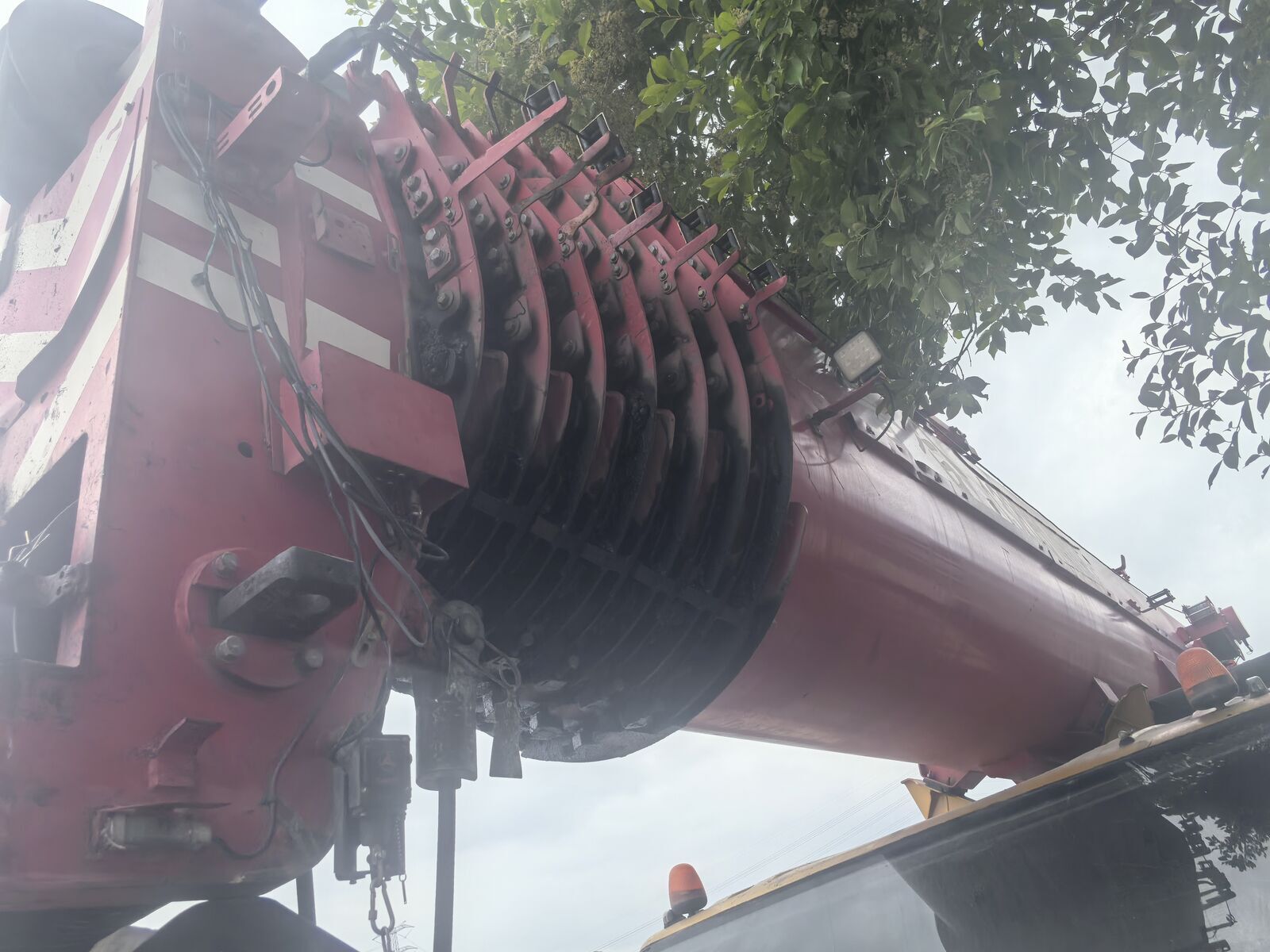

EN: SANY all terrain crane 160Ton （SAC1600T8） Main boom：85.5M Jib length：18M Counterweight 60T（It can be shifted rearward by 500 mm, equivalent to a 68-ton counterweight.） Core Lifting & Boom Parameters Maximum Rated Lifting Capacity: 160 t Main Boom Configuration: 8-section high-strength steel telescopic boom Main Boom Length Range: 14.4 m ~ 85.5 m (fully extended: 85.5 m) Maximum Lifting Height (Main Boom Only): 85.5 m Maximum Lifting Height (Main + Auxiliary Boom): 103.5 m (with 34 m optional jib) Minimum Working Radius: 3 m Maximum Working Radius (Fully Extended Main Boom): ~68 m Auxiliary Boom Options: 18 m standard / 34 m optional Rated Capacity at End of Fully Extended Main Boom (Max Radius): ~11 t Hoisting & Operation Performance Main Hoist Maximum Lifting Speed: 130 m/min (no-load) Maximum Slewing Speed: 1.5 r/min Main Boom Full Telescoping Time: 750 s Chassis & Travel Performance Maximum Travel Speed: 80 km/h Maximum Gradeability: 45% Minimum Turning Radius: 9.5 m Approach/Departure Angle: 16° / 12° Outrigger Span (Full Extension): 8.3 m × 9.08 m Counterweight & Power System Maximum Counterweight: 60000 kg (60 t) Chassis Engine: Weichai WP13.530, rated power 390 kW Emission Standard: National VI (China Stage VI)
Ref No:TG50433
Speed: 80
Vat: 17
EN: SANY all terrain crane 160Ton （SAC1600T8） Main boom：85.5M Jib length：18M Counterweight 60T（It can be shifted rearward by 500 mm, equivalent to a 68-ton counterweight.） Core Lifting & Boom Parameters Maximum Rated Lifting Capacity: 160 t Main Boom Configuration: 8-section high-strength steel telescopic boom Main Boom Length Range: 14.4 m ~ 85.5 m (fully extended: 85.5 m) Maximum Lifting Height (Main Boom Only): 85.5 m Maximum Lifting Height (Main + Auxiliary Boom): 103.5 m (with 34 m optional jib) Minimum Working Radius: 3 m Maximum Working Radius (Fully Extended Main Boom): ~68 m Auxiliary Boom Options: 18 m standard / 34 m optional Rated Capacity at End of Fully Extended Main Boom (Max Radius): ~11 t Hoisting & Operation Performance Main Hoist Maximum Lifting Speed: 130 m/min (no-load) Maximum Slewing Speed: 1.5 r/min Main Boom Full Telescoping Time: 750 s Chassis & Travel Performance Maximum Travel Speed: 80 km/h Maximum Gradeability: 45% Minimum Turning Radius: 9.5 m Approach/Departure Angle: 16° / 12° Outrigger Span (Full Extension): 8.3 m × 9.08 m Counterweight & Power System Maximum Counterweight: 60000 kg (60 t) Chassis Engine: Weichai WP13.530, rated power 390 kW Emission Standard: National VI (China Stage VI)
Ref No:TG50433
Sany SAC1600T8
Speed: 80
Vat: 17
EN: SANY all terrain crane 160Ton （SAC1600T8） Main boom：85.5M Jib length：18M Counterweight 60T（It can be shifted rearward by 500 mm, equivalent to a 68-ton counterweight.） Core Lifting & Boom Parameters Maximum Rated Lifting Capacity: 160 t Main Boom Configuration: 8-section high-strength steel telescopic boom Main Boom Length Range: 14.4 m ~ 85.5 m (fully extended: 85.5 m) Maximum Lifting Height (Main Boom Only): 85.5 m Maximum Lifting Height (Main + Auxiliary Boom): 103.5 m (with 34 m optional jib) Minimum Working Radius: 3 m Maximum Working Radius (Fully Extended Main Boom): ~68 m Auxiliary Boom Options: 18 m standard / 34 m optional Rated Capacity at End of Fully Extended Main Boom (Max Radius): ~11 t Hoisting & Operation Performance Main Hoist Maximum Lifting Speed: 130 m/min (no-load) Maximum Slewing Speed: 1.5 r/min Main Boom Full Telescoping Time: 750 s Chassis & Travel Performance Maximum Travel Speed: 80 km/h Maximum Gradeability: 45% Minimum Turning Radius: 9.5 m Approach/Departure Angle: 16° / 12° Outrigger Span (Full Extension): 8.3 m × 9.08 m Counterweight & Power System Maximum Counterweight: 60000 kg (60 t) Chassis Engine: Weichai WP13.530, rated power 390 kW Emission Standard: National VI (China Stage VI)
Ref No:TG50433
Speed: 80
Vat: 17
EN: SANY all terrain crane 160Ton （SAC1600T8） Main boom：85.5M Jib length：18M Counterweight 60T（It can be shifted rearward by 500 mm, equivalent to a 68-ton counterweight.） Core Lifting & Boom Parameters Maximum Rated Lifting Capacity: 160 t Main Boom Configuration: 8-section high-strength steel telescopic boom Main Boom Length Range: 14.4 m ~ 85.5 m (fully extended: 85.5 m) Maximum Lifting Height (Main Boom Only): 85.5 m Maximum Lifting Height (Main + Auxiliary Boom): 103.5 m (with 34 m optional jib) Minimum Working Radius: 3 m Maximum Working Radius (Fully Extended Main Boom): ~68 m Auxiliary Boom Options: 18 m standard / 34 m optional Rated Capacity at End of Fully Extended Main Boom (Max Radius): ~11 t Hoisting & Operation Performance Main Hoist Maximum Lifting Speed: 130 m/min (no-load) Maximum Slewing Speed: 1.5 r/min Main Boom Full Telescoping Time: 750 s Chassis & Travel Performance Maximum Travel Speed: 80 km/h Maximum Gradeability: 45% Minimum Turning Radius: 9.5 m Approach/Departure Angle: 16° / 12° Outrigger Span (Full Extension): 8.3 m × 9.08 m Counterweight & Power System Maximum Counterweight: 60000 kg (60 t) Chassis Engine: Weichai WP13.530, rated power 390 kW Emission Standard: National VI (China Stage VI)
Ref No:TG50433
