2021 سيمنز SGT-300

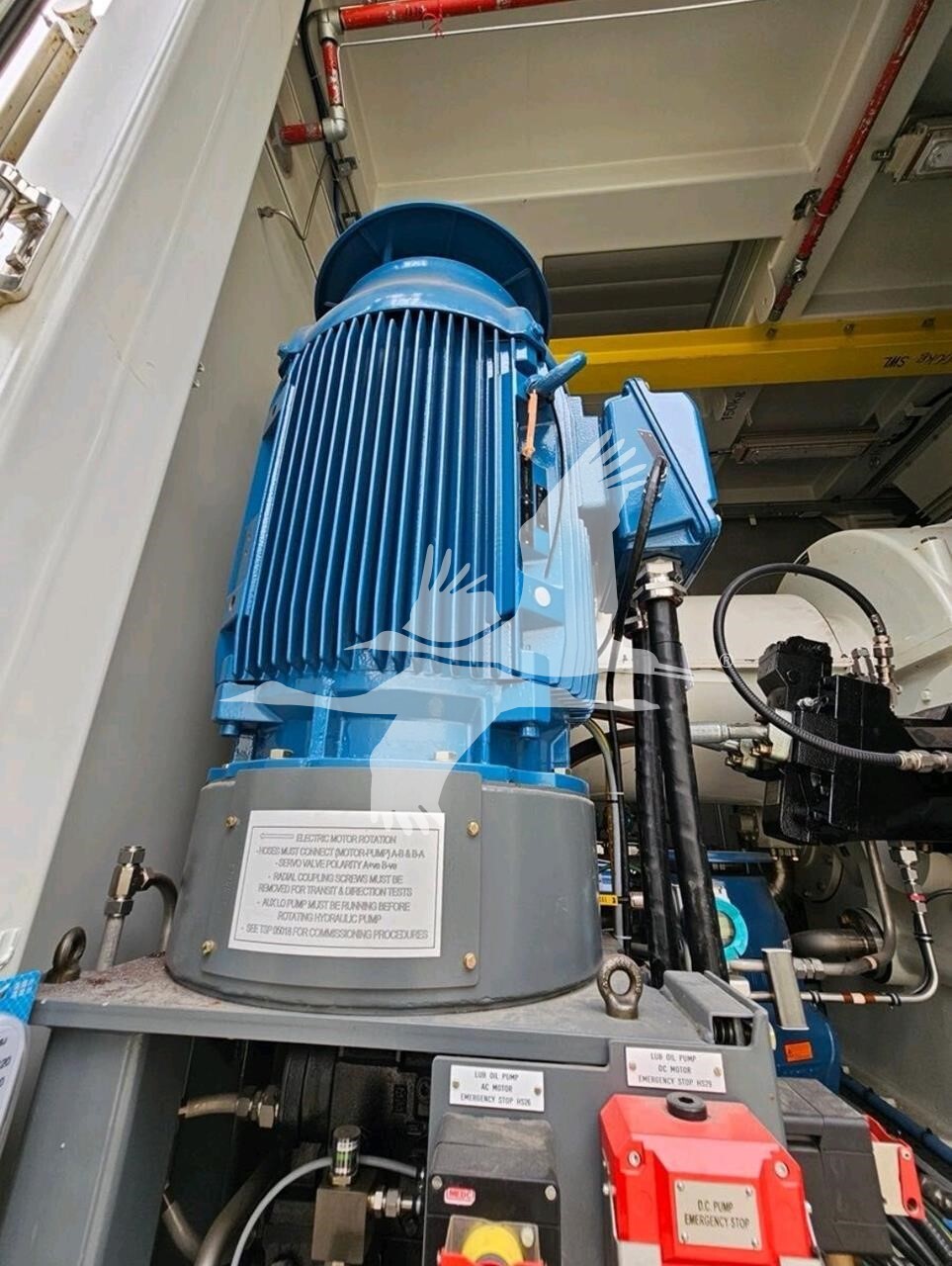

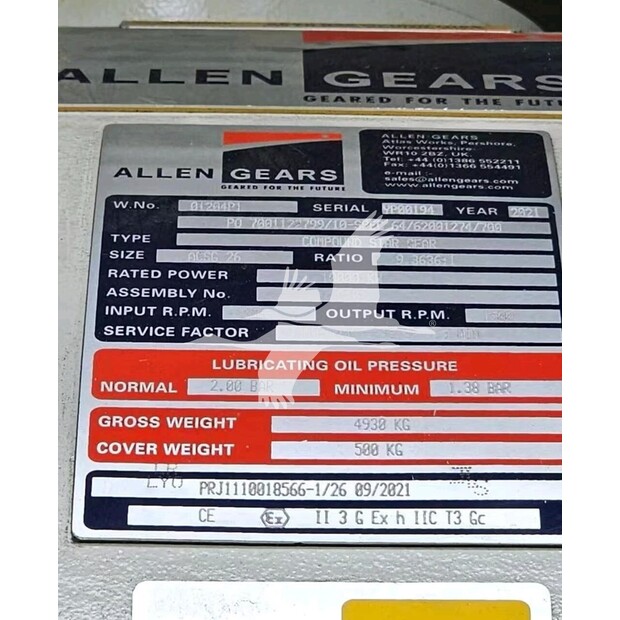

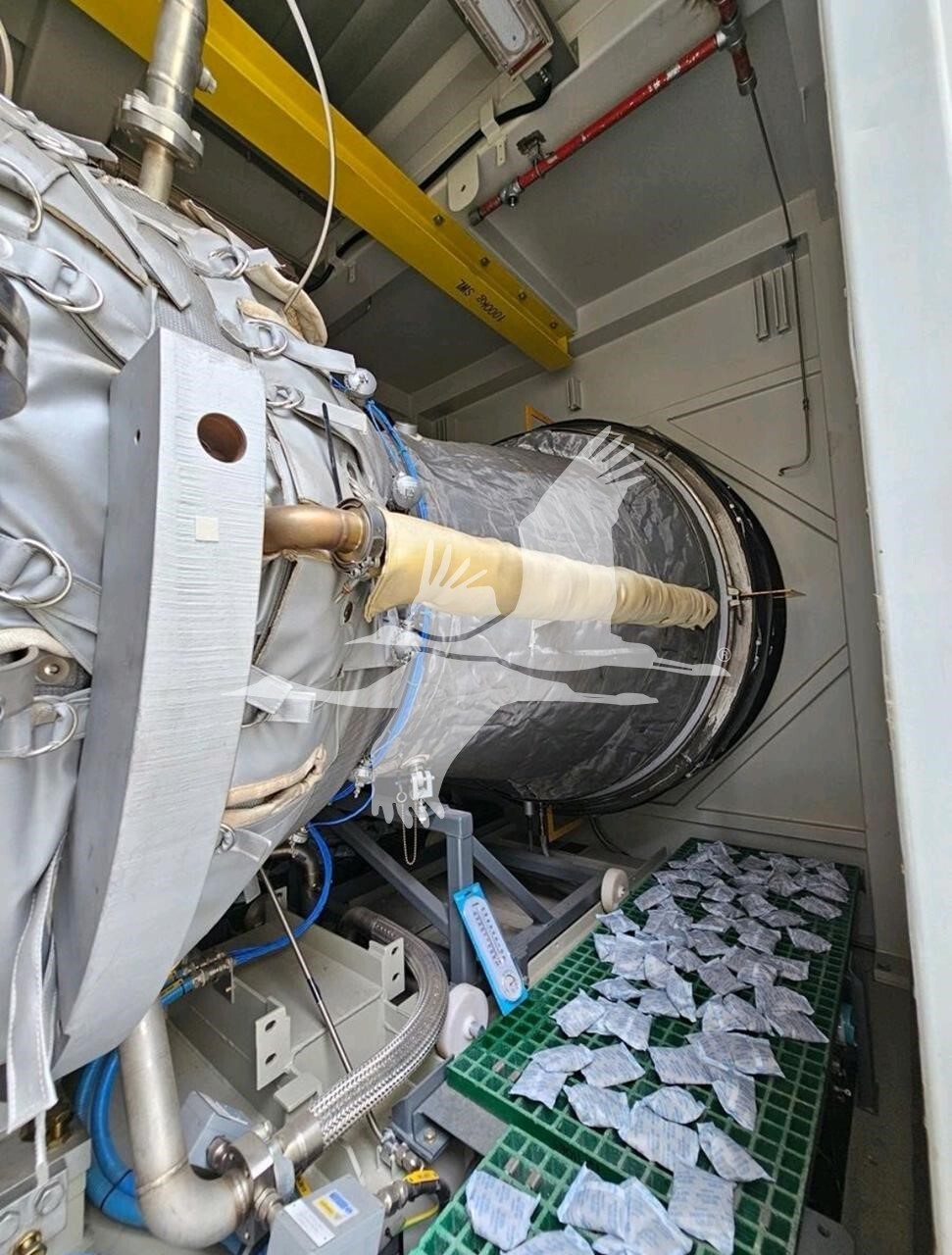

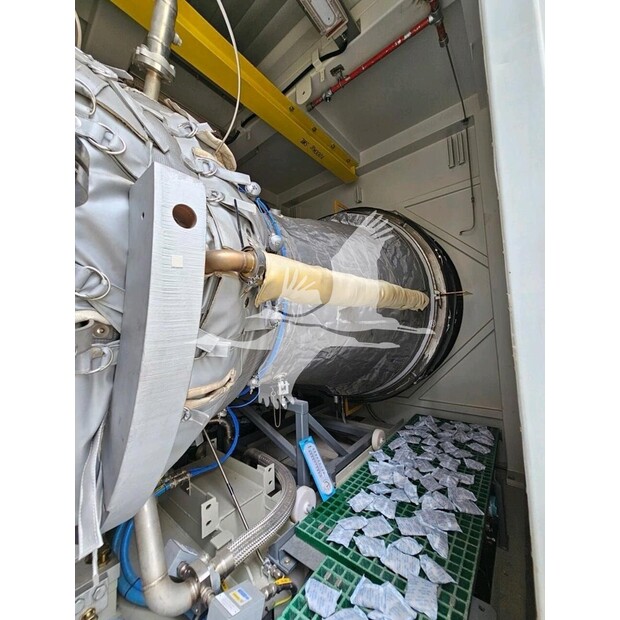

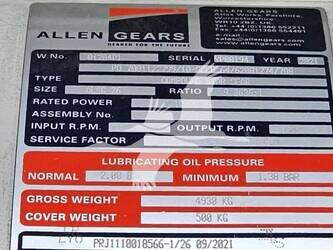

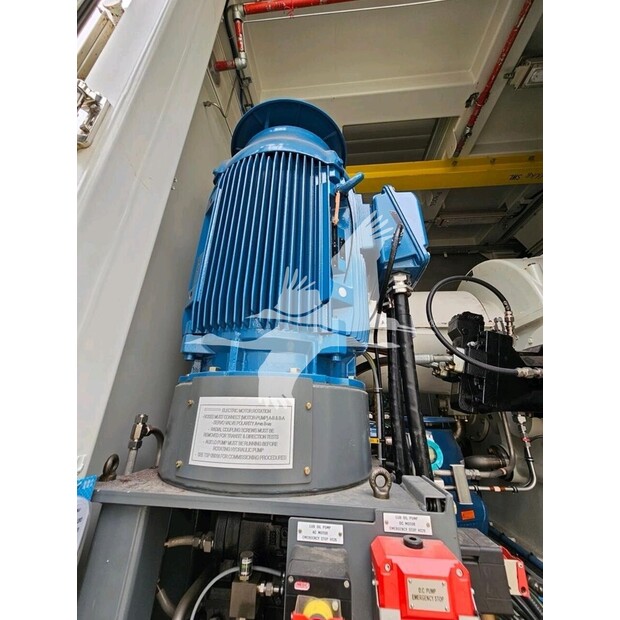

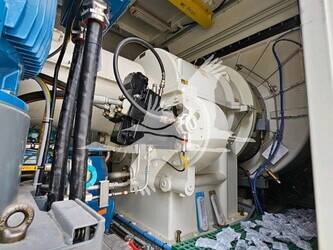

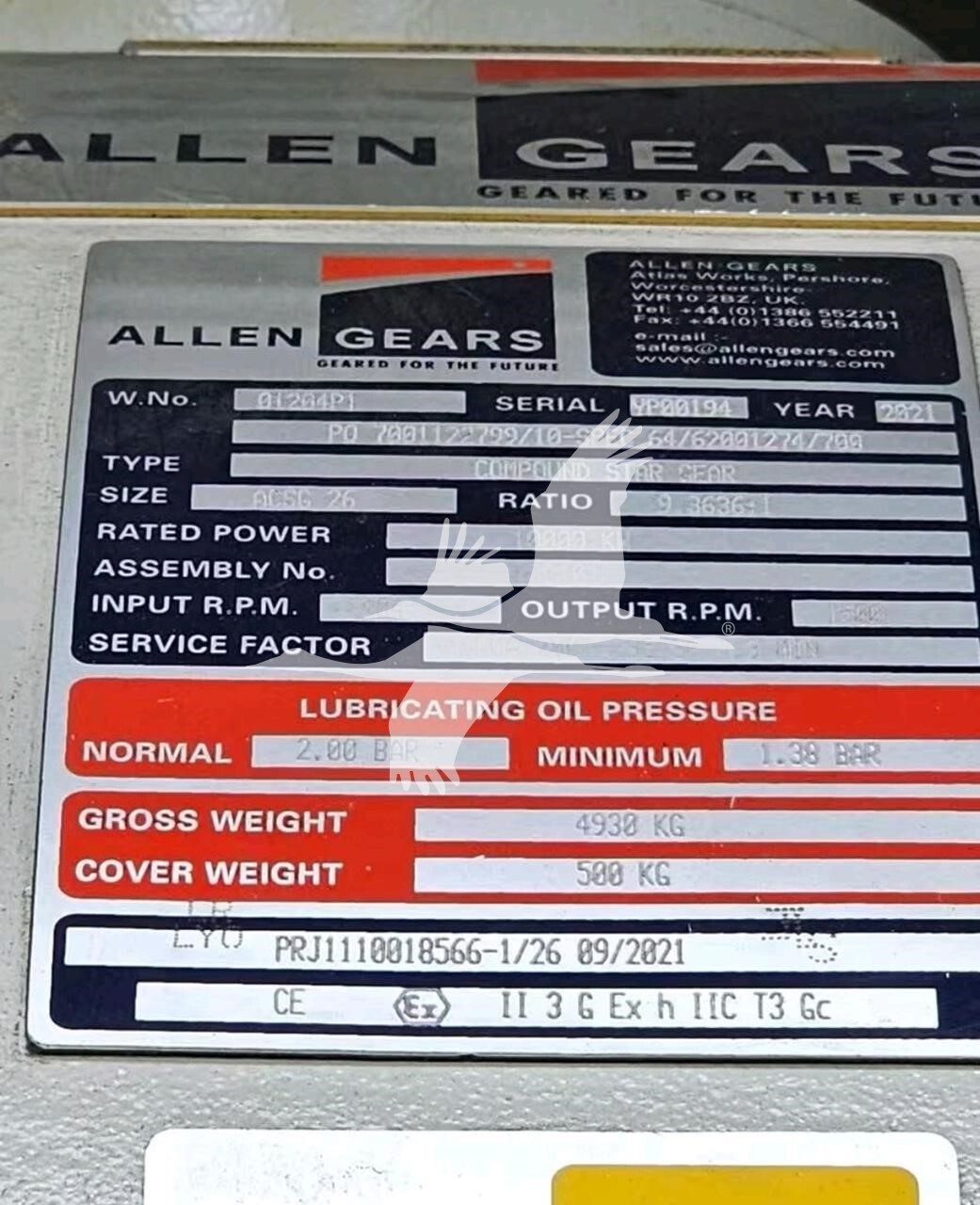

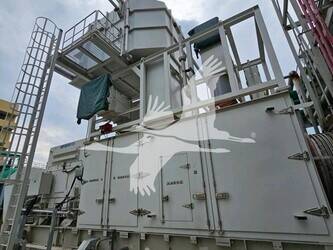

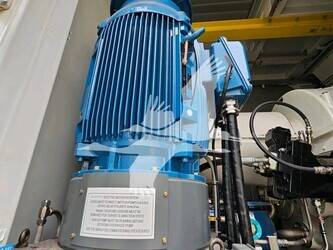

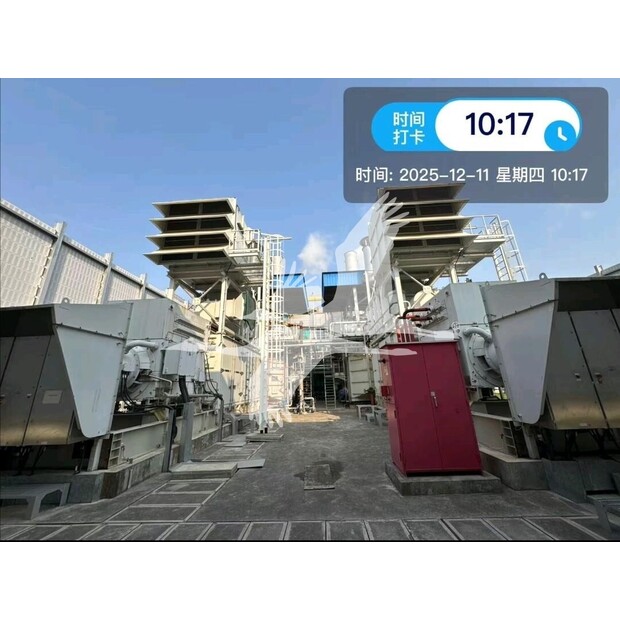

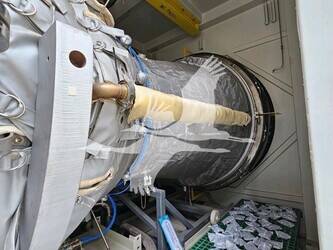

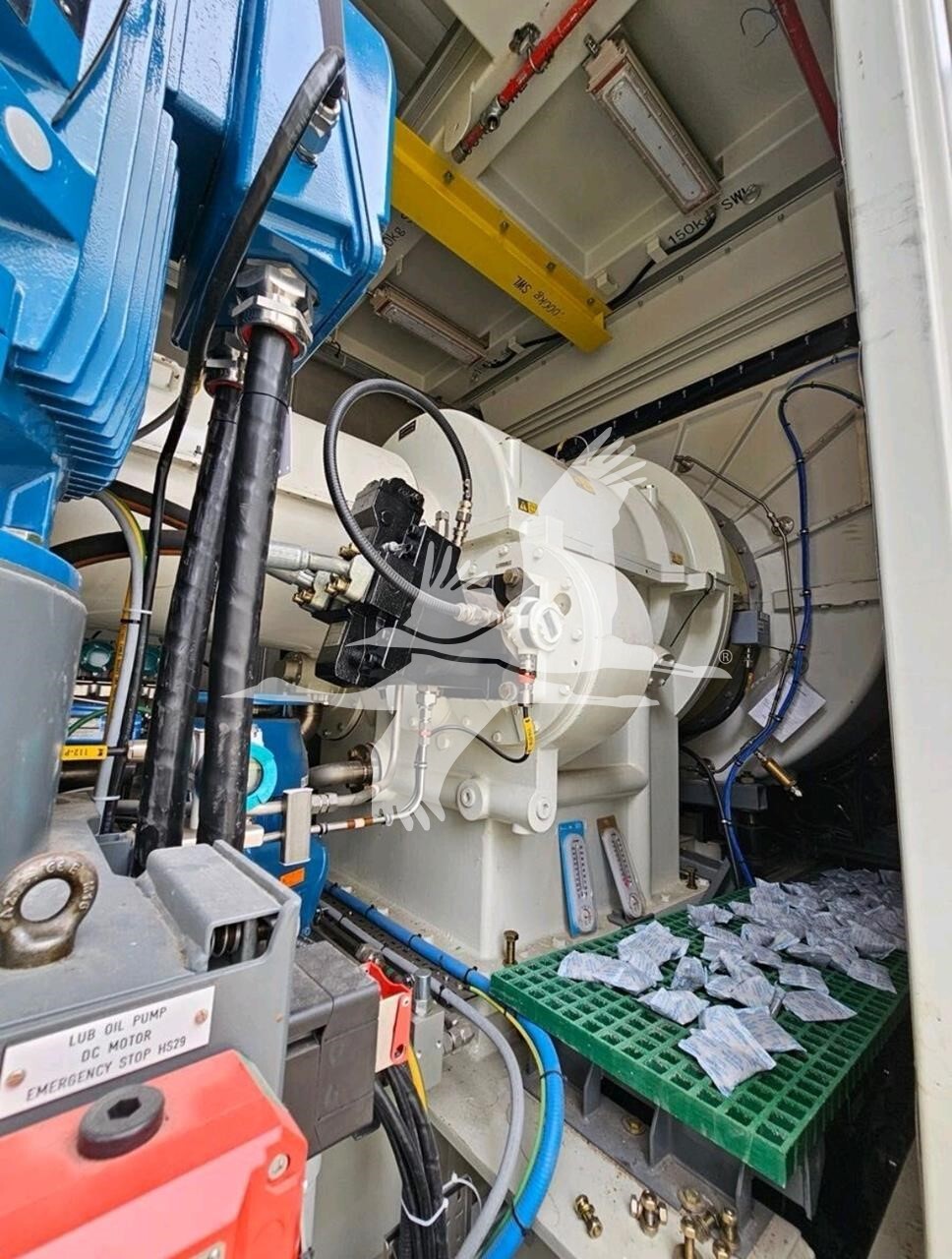

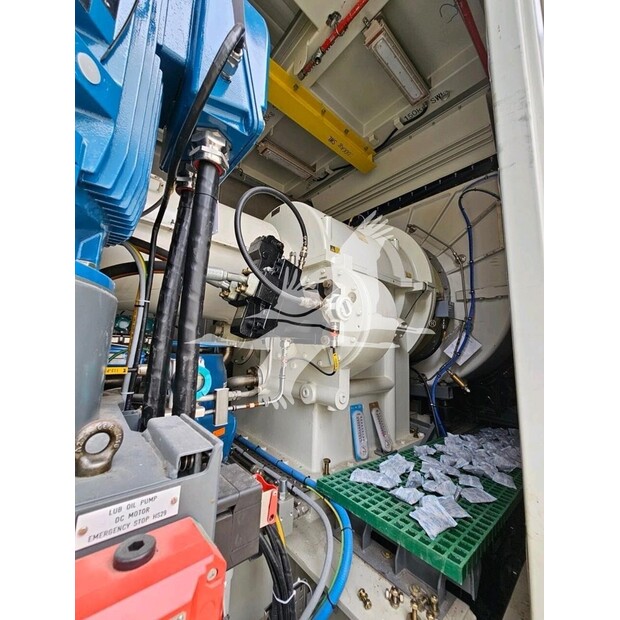

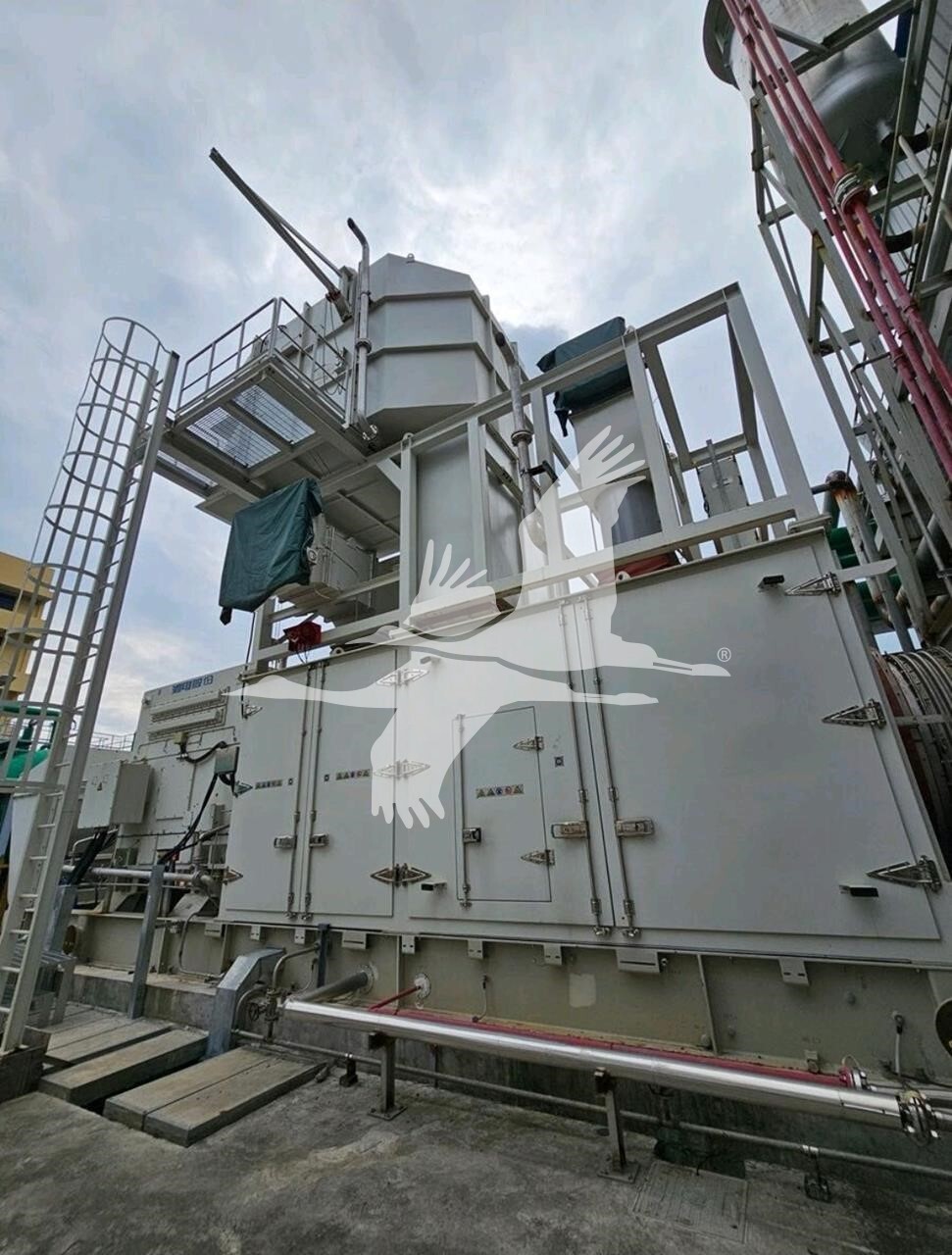

5 x Siemens un-used SGT-300 gas turbine generator packages, each complete with generators, control systems, auxiliaries, spare parts and technical documentation SIEMENS Gas Turbine Skid SGT-300 8MW Base Module Steel construction Skid Gas Turbine Core Engine: Including 10-stage compressor, 2-stage turbine, 6 DLE burners, annular combustion chamber with ignition bolt and flame monitoring, adjustable inlet guide vane, tilting pad thrust bearing, body fuel line, cooling and sealing air system, cylinder, chassis, body paint insulation, etc Gear Box: Including main reduction gear, auxiliary gear, coupling, monitoring instrument, etc Lube Oil System: Including main lubricating oil pump, auxiliary lubricating oil pump, accident lubricating oil pump, oil mist separation, lubricating oil filter, heater, cooler, temperature, liquid level, pressure monitoring instrument, oil tank, pipeline, etc Start System: Including starting motor and hydraulic motor, etc Gas Fuel System: Including flow control valve, filter, quick cut-off valve, release valve, monitoring instrument, etc Generator TFW8-4 (XEMC CHINA)，8MW: Including generator body, air water cooler, brushless excitation, temperature and vibration monitoring instrument Air Intake System: Including rain cover, water mist separator, two-stage static filtration (G4+F9), inlet, silencer, expansion joint, platform aisle, monitoring instrument, etc Enclosure and Ventilation System: Including open-air noise reduction cover, with lighting, ventilation fan, maintenance platform, baffle valve, etc Exhaust System: Including body, insulation, expansion joint (with insulation), monitoring instrument, etc Fire Fighting System: Temperature sensing probe, flame probe, infrared combustible gas detector, CO2 cylinder, nozzle, local cylinder room, connection pipe, etc Compressor Washing Unit : Including water tank, diaphragm pump, low pressure water pipe, pressure gauge, etc GT Control System: Including PCS7 control system, HMI operator station, disk-mounted emergency jump-off button, distributed I/O disk, etc Special Tools: Including some installation, commissioning, maintenance tools spare parts Drawings: Including factory certificate, drawings and operation and maintenance manual
