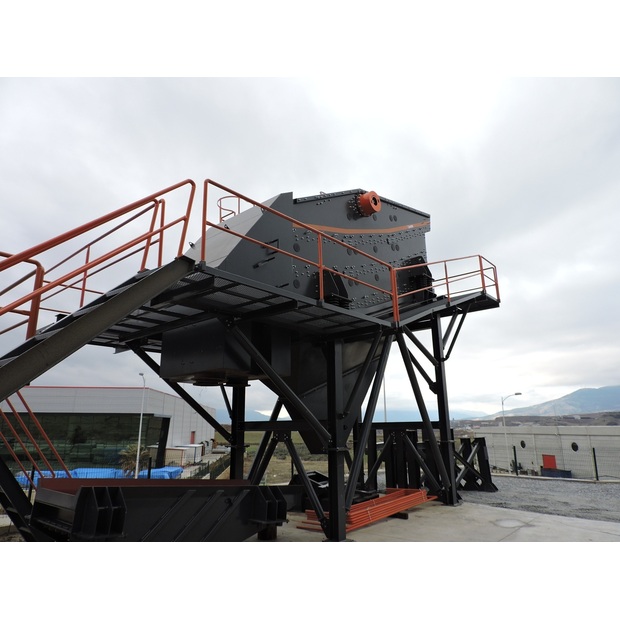

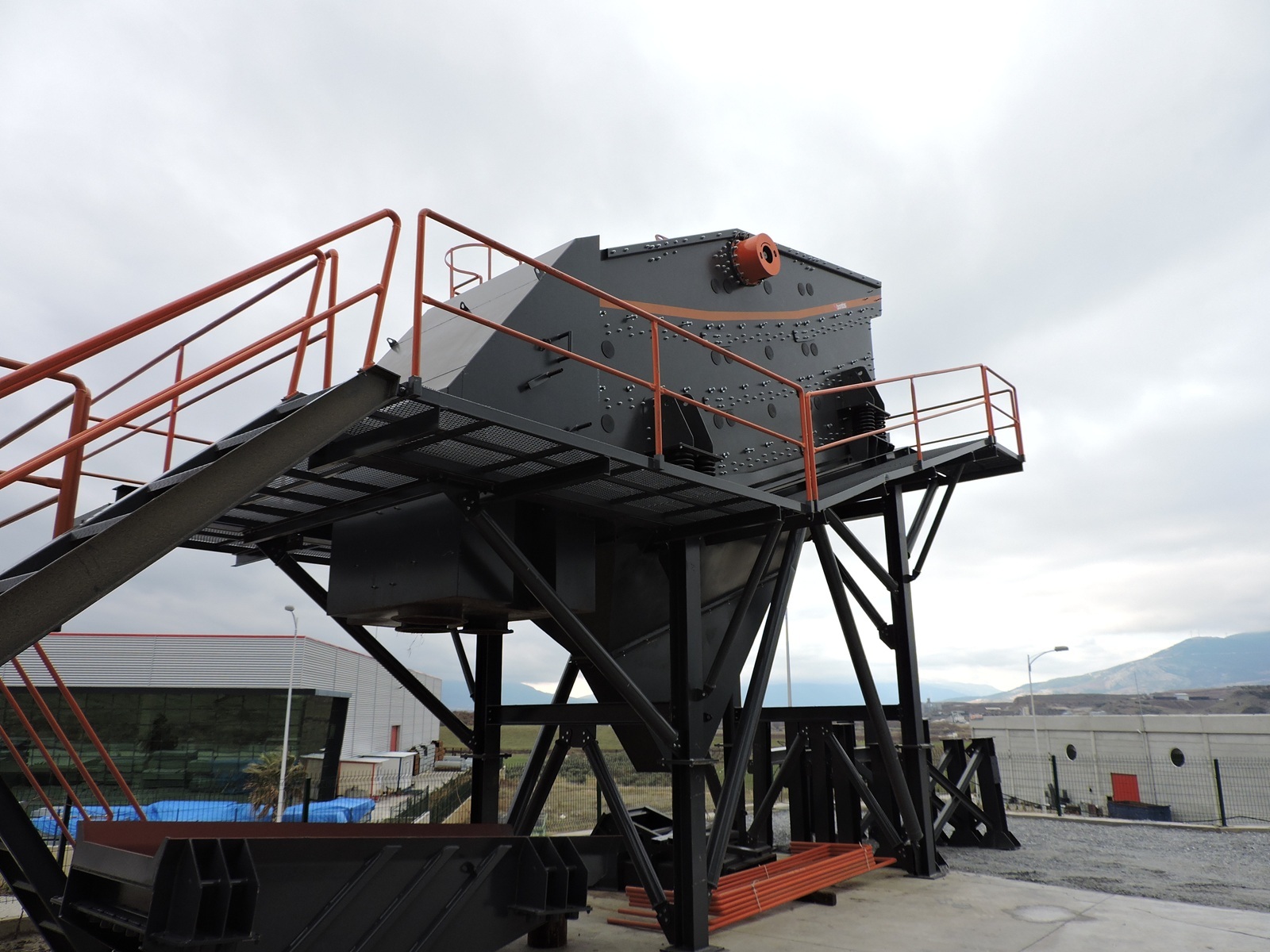

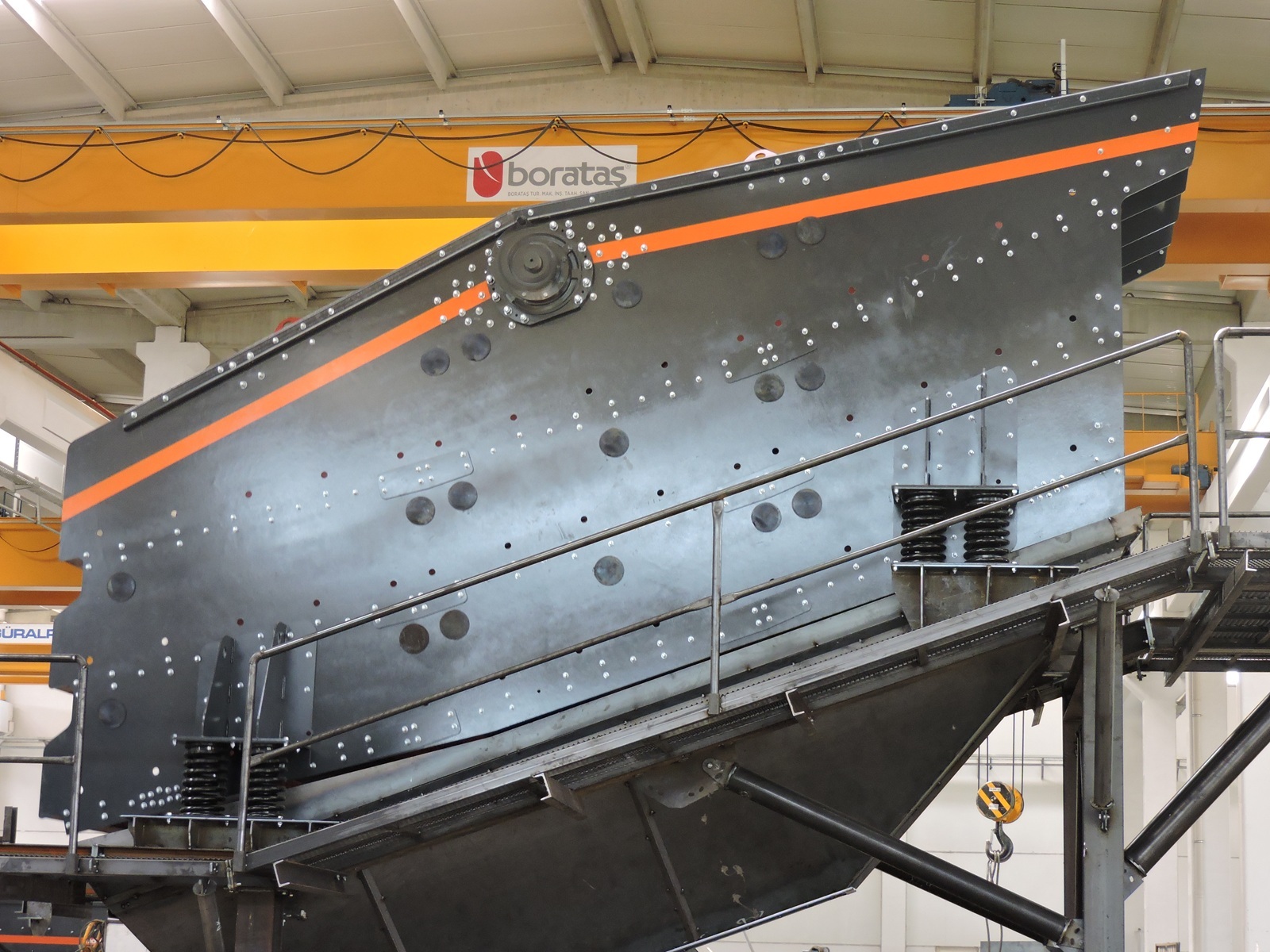

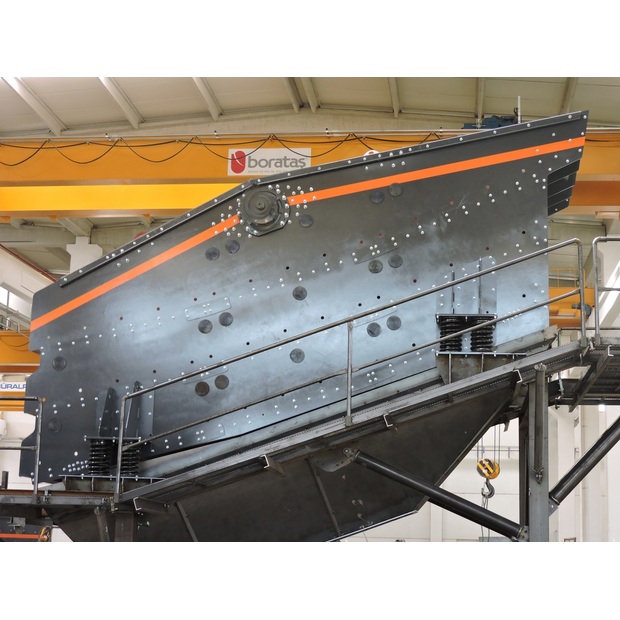

2026 Boratas BKE 303

Boratas BKE303 Multi-Slope Screen is a stationary screening machine designed for high-capacity classification of aggregates in quarry, mining, and crushing plant applications. It is used where efficient separation into multiple product sizes is required with stable operation and minimal downtime.

These screening units are configured with a three-slope screen geometry that accelerates material flow at the feed end and increases retention time toward the discharge end. This layout improves material stratification and screening efficiency compared to conventional flat screens, particularly under high feed rates.

Powered by a 22 kW electric motor operating at 1000 rpm, the BKE303 uses a shaft-mounted drive system with twin counterweights to generate consistent circular vibration. The three-deck configuration allows simultaneous separation into three product fractions, making it suitable for fixed crushing and screening plants with high throughput demands.

Technical Specifications

• Screening Surface Dimensions: 2000 x 6000 mm
• Number of Decks: 3
• Motor Power: 22 kW
• Operating Speed: 1000 rpm
• Weight: approx. 9,500 kg

Manufactured in compliance with global quality standards and supported by Boratas warranty after-sales service.

Explore further details of Boratas multi slope screens and other aggregate screening solutions on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.

Standard Features
• Large screening surface.
• Triple-slope screen geometry.
• Shaft-mounted drive system with twin counterweights.

Optional Features
• Modular screen meshes (wire, rubber, polyurethane).
• Water spray system for wet or sticky material.
• Dust enclosure covers.
• Automatic lubrication unit.
