2026 Boratas BPE103

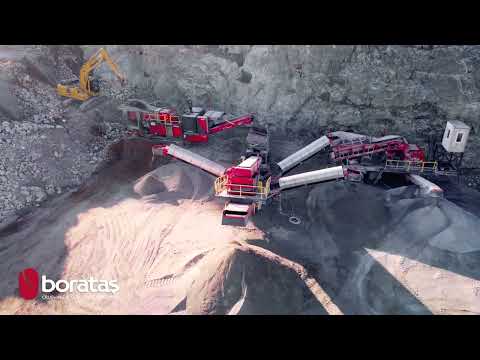

Boratas Classtrack Series Mobile Vibrating Screen BPE103 is a high-capacity tracked screening unit used in aggregate production, quarrying, mining, and recycling operations. It is typically integrated into multi-stage crushing and screening plants and fed by a crusher or excavator, providing efficient material classification and stable material flow under demanding site conditions. The machine is equipped with a 3 decks vibrating screen to support high-throughput and accurate grading.

With its advanced vibration system and robust crawler-mounted design, the BPE103 delivers reliable screening performance, low operating costs, and operational flexibility while maintaining good mobility and compact dimensions across a wide range of sectors.

The Boratas Tracked Mobile Screener is available in standard and configurable versions, allowing adaptation to different material characteristics, capacity requirements, and site conditions.

Plug-in Hybrid Drive (Diesel–Electric) The BPE103 is equipped with an efficient full electric drive system supported by an integrated diesel generator. This hybrid power configuration ensures reduced fuel consumption, lower maintenance requirements, and the ability to operate both on-grid and at remote job sites without compromising screening performance.

Technical Specifications

• Decks: 3
• Screen Dimensions: 1,500 × 5,000 mm
• Operating Weight: 33,000 kg
• Onboard Generator: 110 kVA (Perkins motor)

Manufactured in compliance with international quality standards and supported by Boratas warranty after-sales service.

Explore further details about Boratas tracked inclined screens on our website www.boratasglobal.com, and do not hesitate to contact us for your project-specific inquiries.

Main Components
• Grizzly feeder hopper
• Triple-deck inclined vibrating screen
• Electric or diesel-electric drive system
• Hydraulically foldable conveyors
• PLC-based control system
• Wireless remote control
• Drum motors for conveyors
• Integrated lighting arm
