2026 Mas Trailer Food Transport AISI316

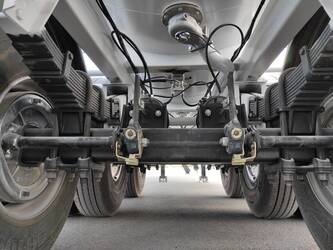

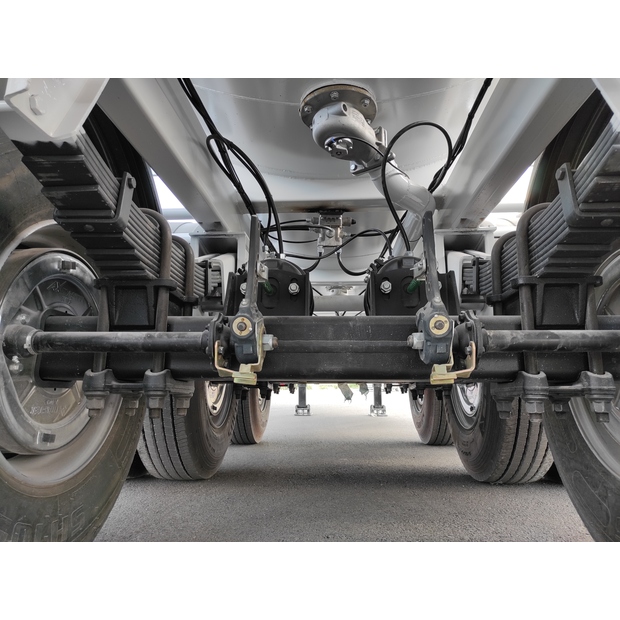

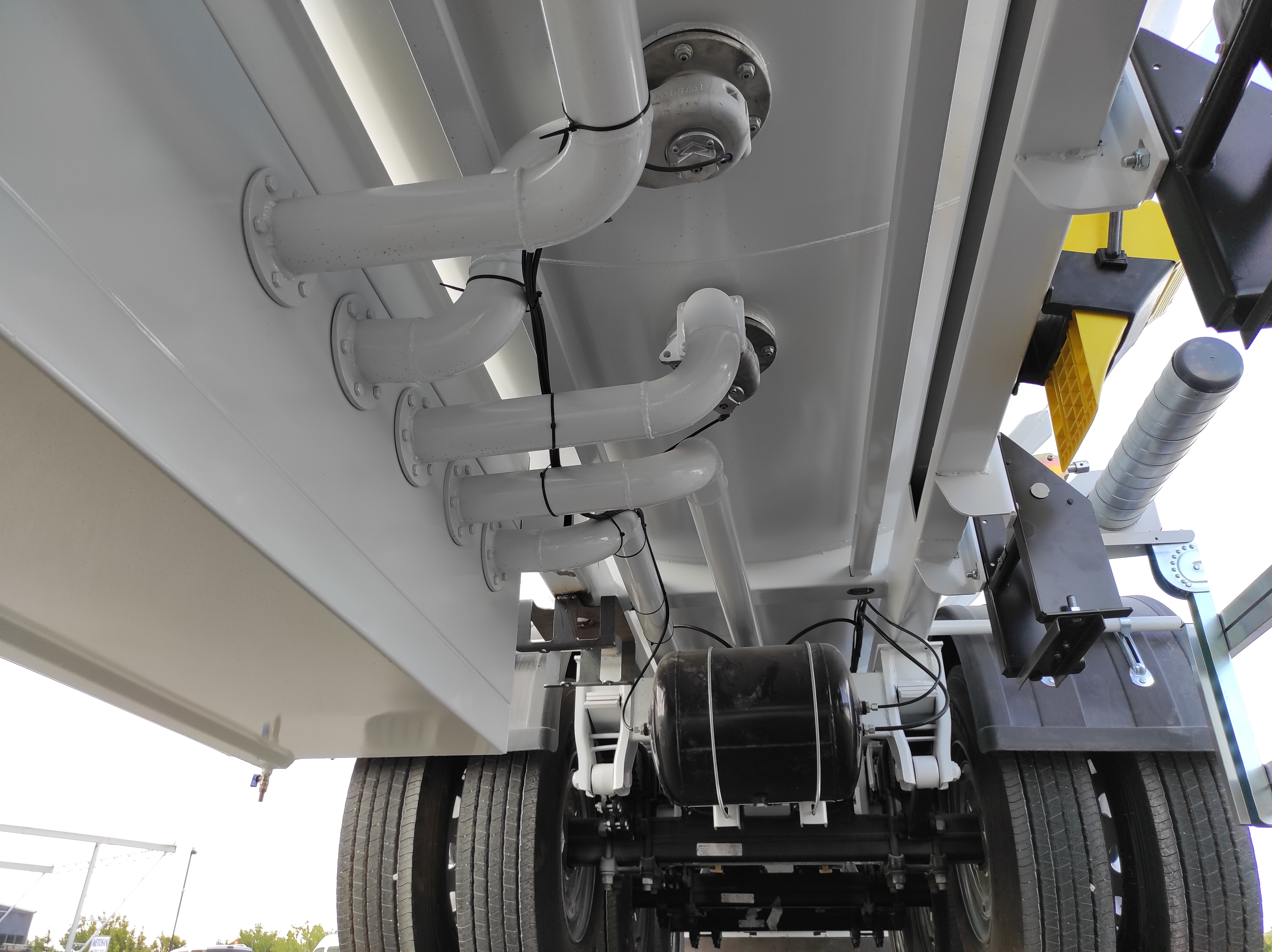

Brand: Mas Trailer Tanker Model: 2026 Model Stainless Steel Food Tanker Type: Tanker Semi Trailer DIMENSIONS: Length: 10850mm Width: 2550 mm maximum Height: 3750mm Pin - ground clearance: 1,250 mm Distance between axles: 1310 mm CHASSIS AND STRUCTURE: Chassis: Carbon Steel 100x200x5mm Box Profile Tanker Structure Monoblock 1 & 5 Compartment Tank capacity between 25,000 lt & 50,000 lt 4mm 304 quality chrome stainless steel sheet Axle: Three Turkish brand axles, each with a carrying capacity of 9 tons, are used. It has air suspension. The front axle is lifted and can be controlled from the driver's cabin. BRAKE SYSTEM: Knor or Wabco brand products are used in the brake equipment designed according to European rules. It is equipped with Automatic Brake Slack Adjusters, Brake Valve, Brake Chambers (30 cylinder), Brake Pads (394x200), Axle Brakes (4 Sensor 2 Module EBS system). There are 2 replaceable and protected brake sockets at the front of the trailer. 60+60 lt capacity air tank is installed. ELECTRICAL SYSTEM: Saba Brand 2x7 pin sockets - 24V, lights compliant with SAE standards. Rear stop lights, side marker lights, brake safety warning lights and signal lights will be installed. There will be 2 tail and stop combined lamps. 2 turn signal combination lamps will be installed 1 license plate light. The electrical system complies with European standards and is flame resistant. PARK FEET: OMS brand Parking Stands Telescopic, mechanical conveyor gear Dynamic Lifting Capacity : 25 Ton Static Lifting Capacity : 50 Ton Low Gear Position : 0.98 mm / Revolution TIRES AND RIMS: 385/65/R22.5STARMAX, PETLAS, Goodyear, Pirelli, Bridgestone (6 Pieces) 11.75 x 22.5, JANTSA rim (6 pieces) KING PIN: Turkish brand OMS will be used. It is a removable king pin from the bottom in 74080 standards and is made according to SAE standards as an 8-bolt type. It has an E certificate. PAINTING: Since chrome tankers are made of stainless steel, they do not require painting, but if painting is desired, the following operations are carried out in order. All parts are carefully cleaned before painting. Epoxy is used for the first protective primer and coating. Two coats of high quality paint are applied to the tanker. The tanker will be painted white. It can be painted in any color desired. Manhole Cover: The lower throat plate (stainless chrome) is welded to the upper part of the tankers and mounted to the tanker. The upper plate is connected to the throat plate with leak-proof gaskets and screws. Mushroom type breathers will be mounted on top. The middle opening manual cover is 250 mm in diameter. Valve: It is installed inside the cabinet, one for each compartment in the tanker. It is used to empty the tank. 3” Flange connection ball valve is made of chrome stainless material and is protected against corrosion. Its sphere is coated with stainless material. Liquid and heat resistant teflon material is used in the sealing parts. ACCESSORIES: 1 unit of cabinet for loading-unloading system. 1 Material cabinet 6 pieces of Domar brand mudguards 2 wheel chocks 2 x 6 kg fire extinguisher boxes 1 spare wheel space 1 water tank 30 lt. 1 Ladder Holder for two 3.5 m long drain hoses
