2026 XCMG XT4018K
Price
4
$
1
€
1
£
1
$
4
Year
2026
Condition
New
1
/
11

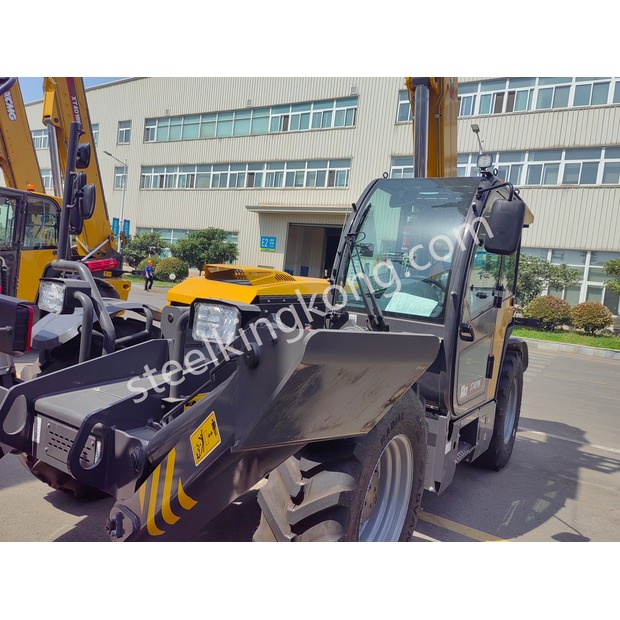

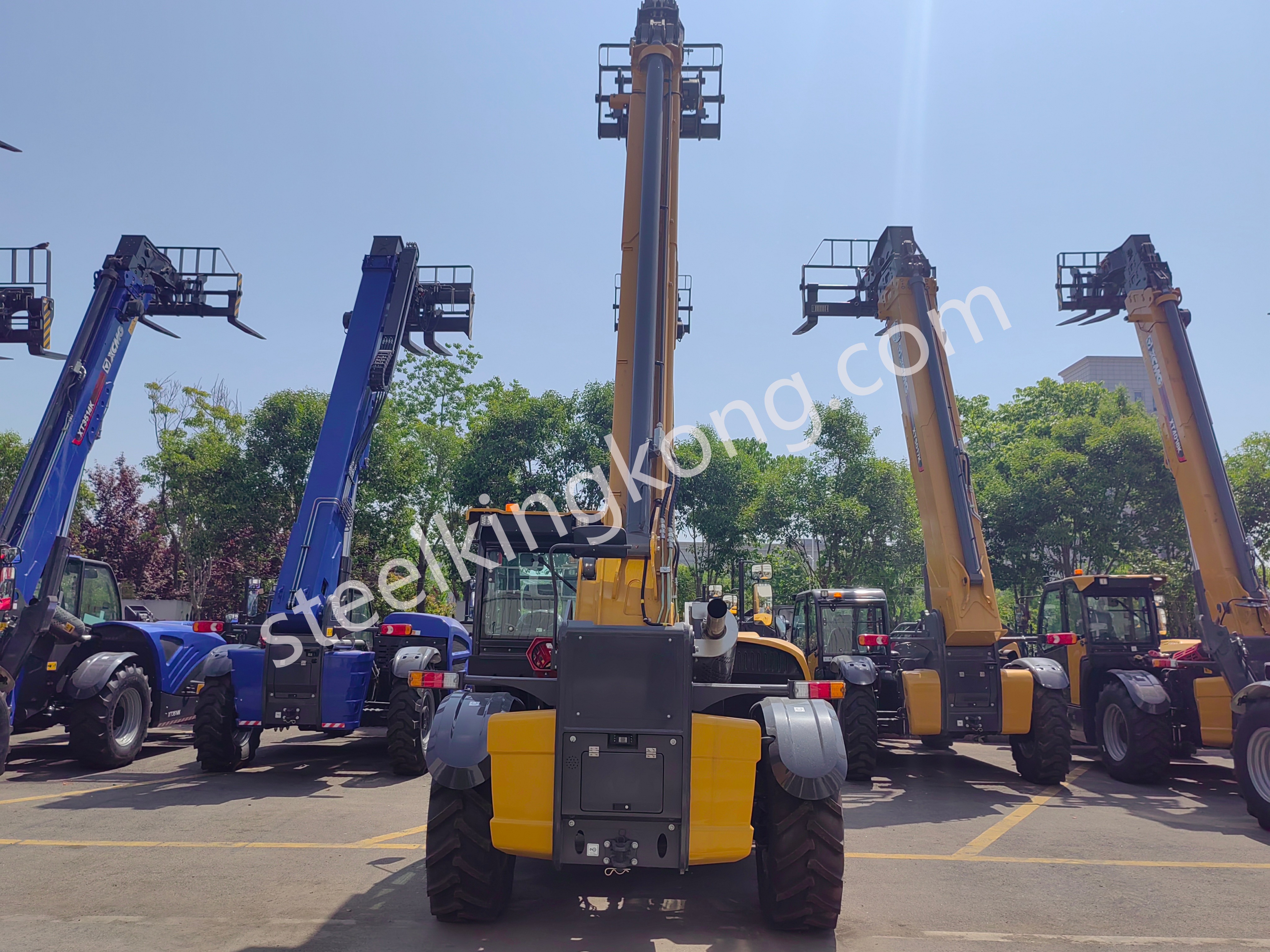

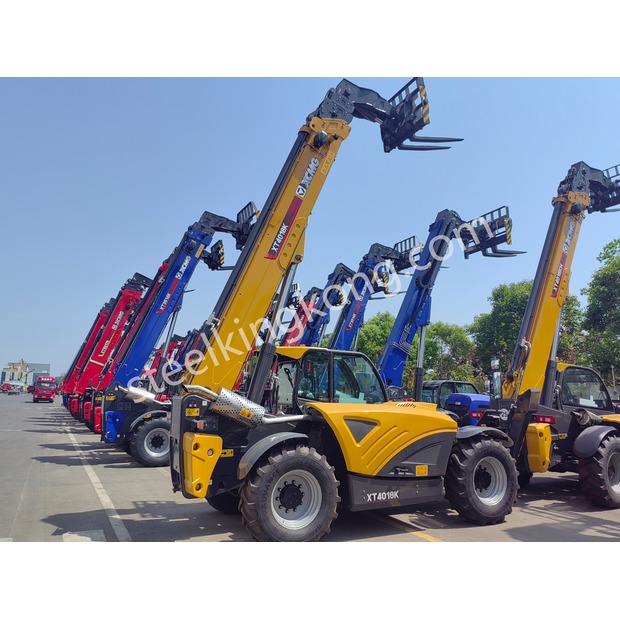

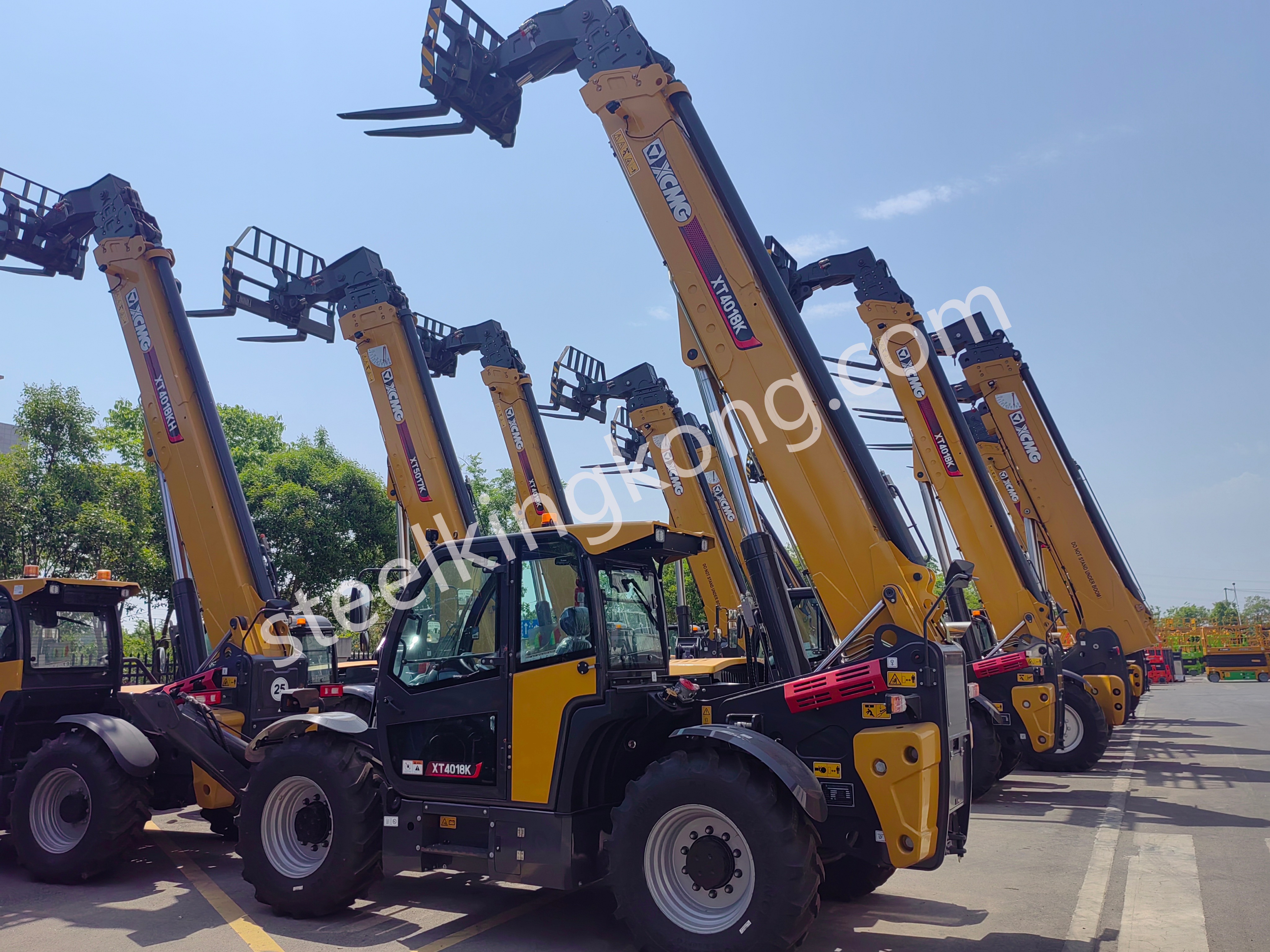

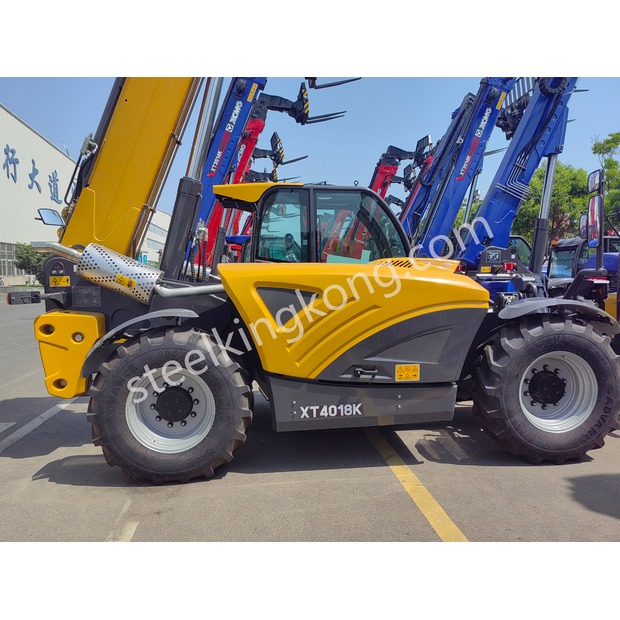

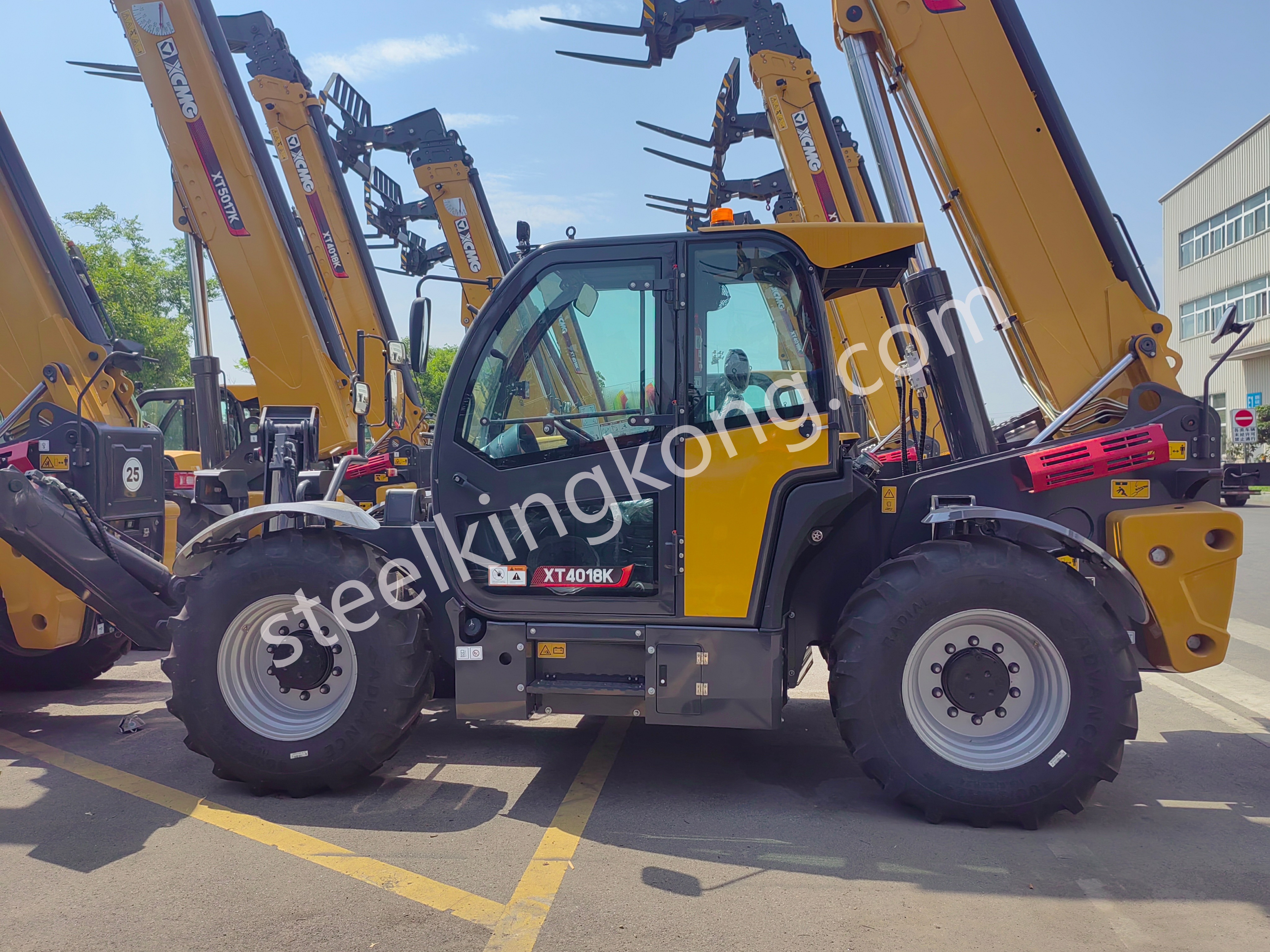

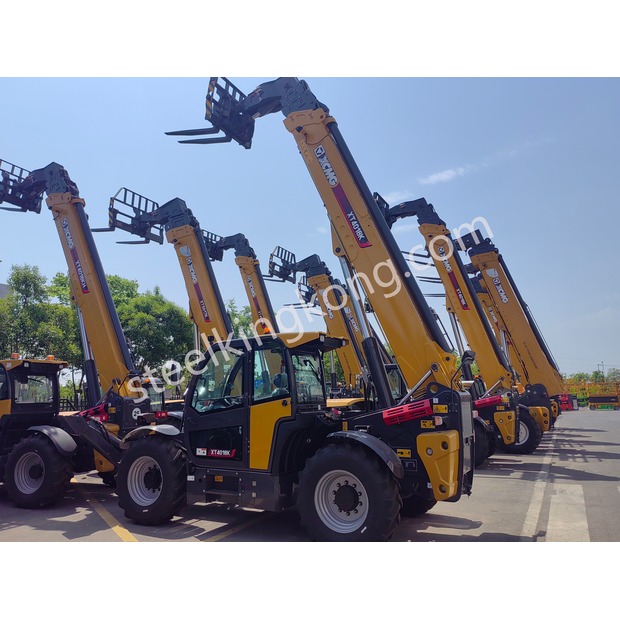

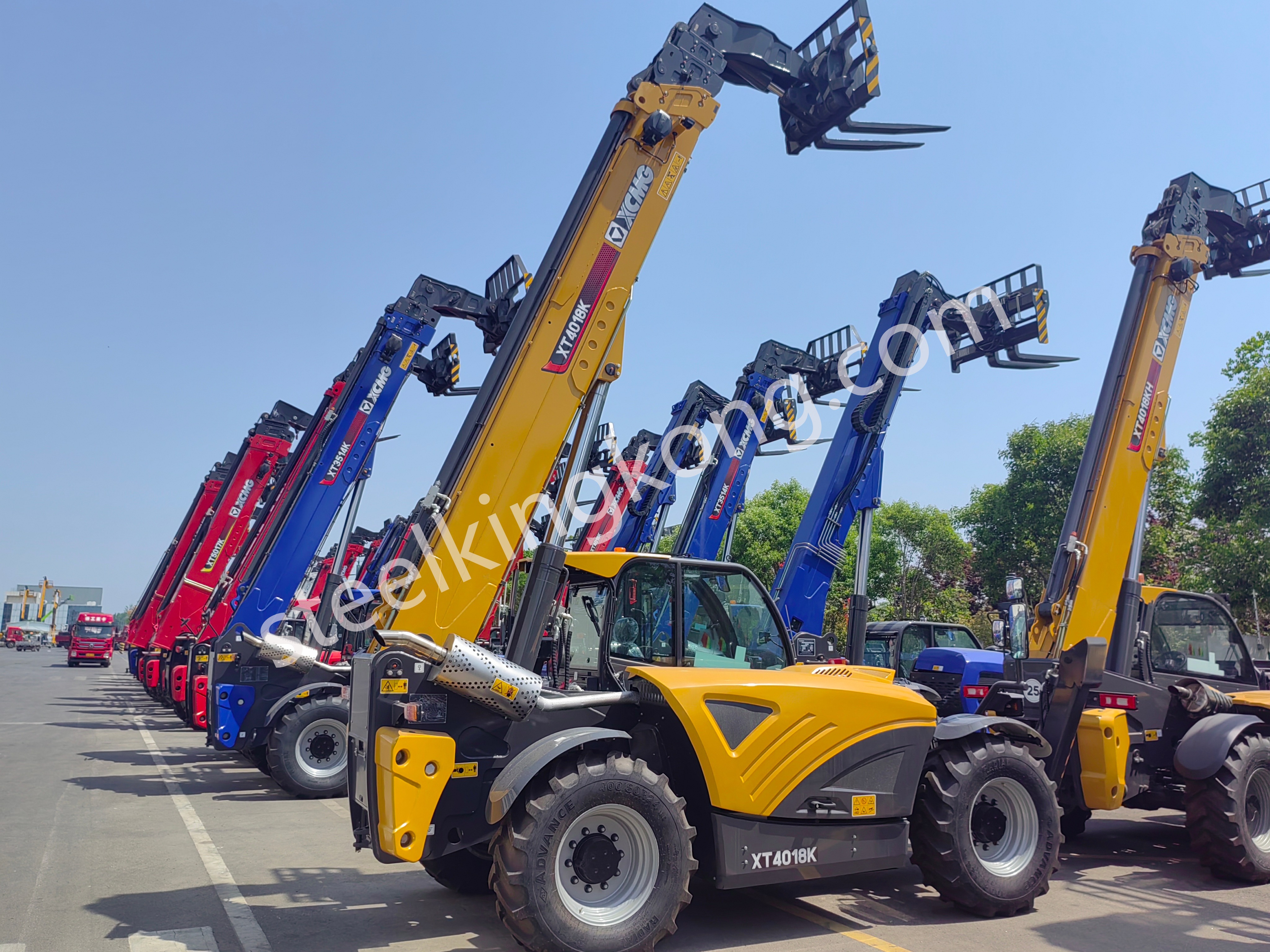

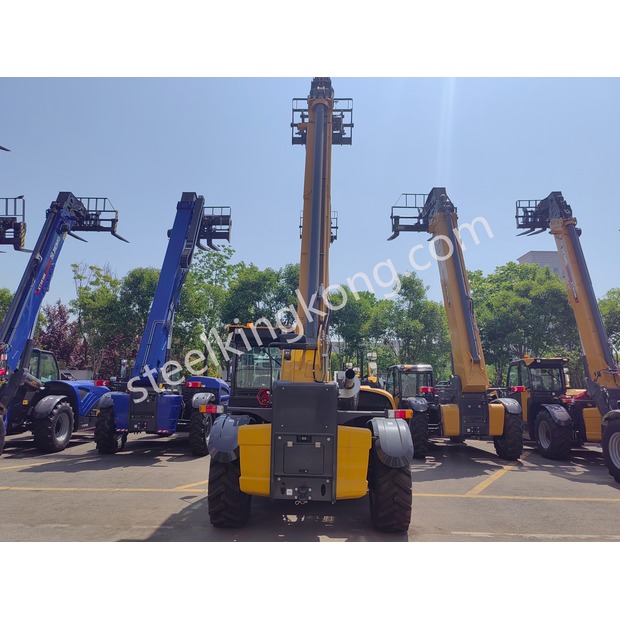

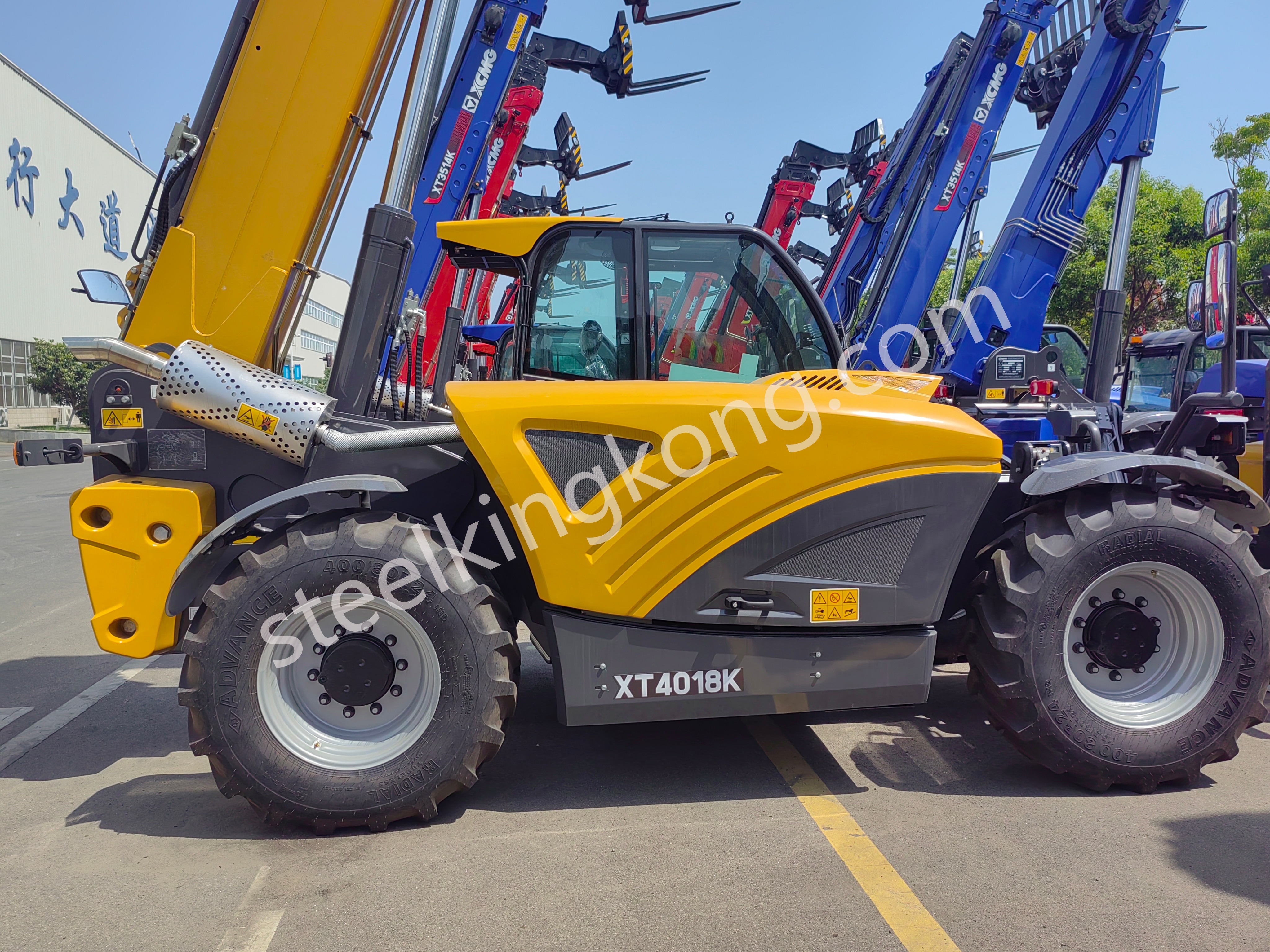

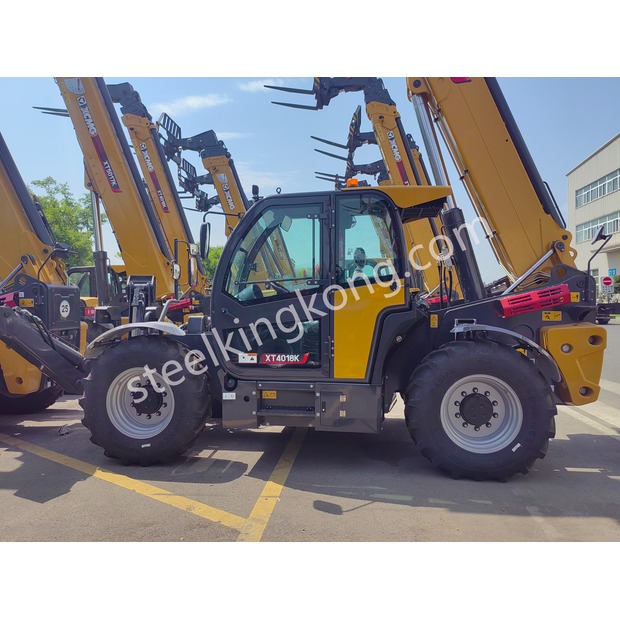

2026 XCMG XT4018K
1
/
11
Overview
Description
XT4018K multi-purpose off-road telescopic forklift is widely used in various industries such as construction, agriculture, mining, port logistics, municipal fire protection, etc.
Item Parameter
Total Weight (with forks) 12000kg
Overall Dimensions (L×W×H) 6305×2420×2550mm
Rated Capacity 4000kg
Load Center Distance 600mm
Max. Lifting Height (to fork upper surface) 17.55m
Rated Capacity at Max. Lifting Height 2500kg
Max. Forward Reach (boom horizontal, from load center to tire front) 13.4m
Rated Capacity at Max. Forward Reach 750kg
Working Device
Luffing Time (Lifting) ≤18s
Luffing Time (Lowering) ≤17s
Boom Extension Time ≤23s
Boom Retraction Time ≤22s
Fork Carriage Forward Tilt Time ≤5s
Fork Carriage Backward Tilt Time ≤4s
Boom Luffing Range -3° ~ 72°
Fork Carriage Tilt Range (boom horizontal) -14° ~ 112°
Performance Parameters
Max. Travel Speed ≥27km/h
Max. Traction Force ≥60kN
Min. Turning Radius (outer tire) ≤4200mm
Min. Ground Clearance 370mm
Wheelbase 3050mm
Track Width 1960mm
Frame Lateral Oscillation Angle ±10°

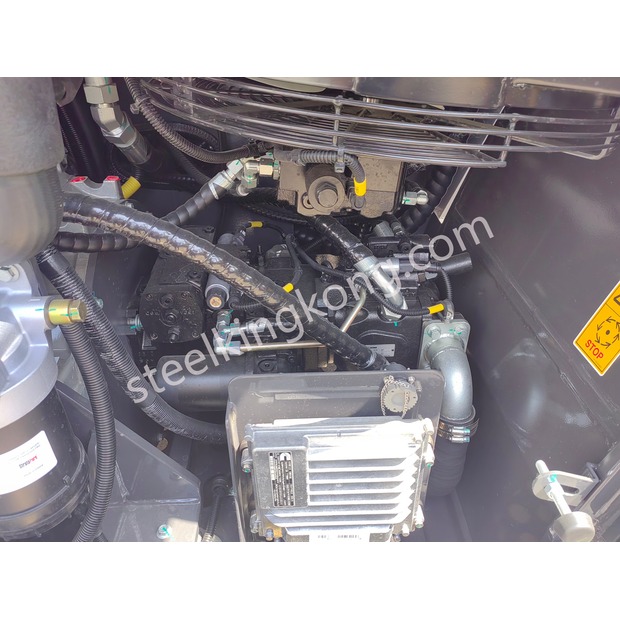

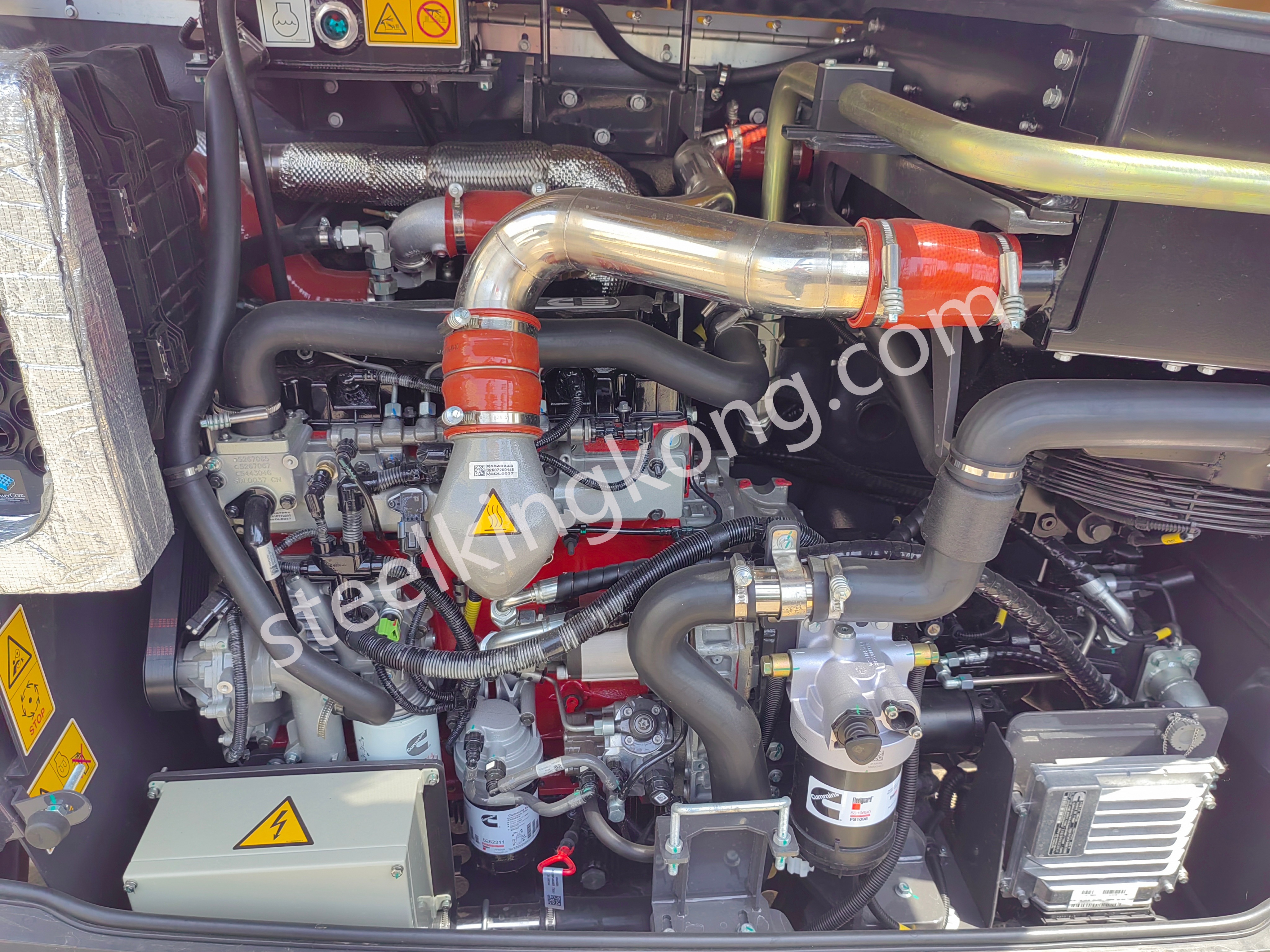

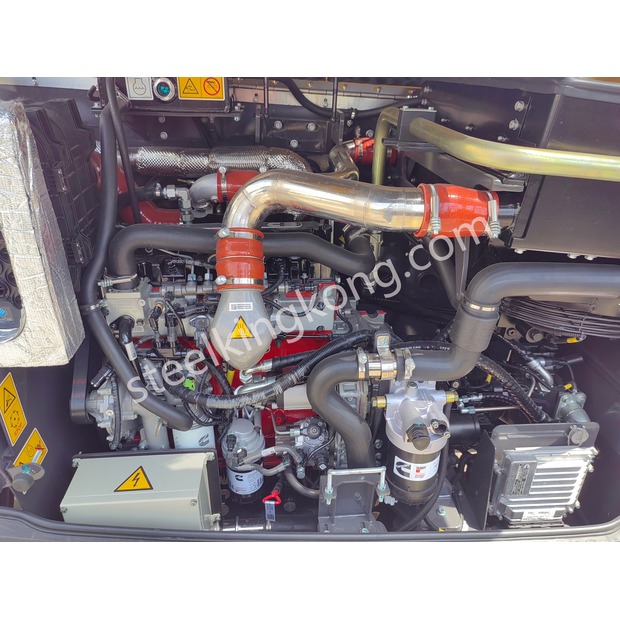

Engine
Model YCF36100
Rated Power 74kW
Rated Speed 2200r/min
Tire Specification 400/80-R24
XT4018K multi-purpose off-road telescopic forklift is widely used in various industries such as construction, agriculture, mining, port logistics, municipal fire protection, etc.Item Parameter
Total Weight (with forks) 12000kg
Overall Dimensions (L×W×H) 6305×2420×2550mm
Rated Capacity 4000kg
Load Center Distance 600mm
Max. Lifting Height (to fork upper surface) 17.55m
Rated Capacity at Max. Lifting Height 2500kg
Max. Forward Reach (boom horizontal, from load center to tire front) 13.4m
Rated Capacity at Max. Forward Reach 750kg
Working Device
Luffing Time (Lifting) ≤18s
Luffing Time (Lowering) ≤17s
Boom Extension Time ≤23s
Boom Retraction Time ≤22s
Fork Carriage Forward Tilt Time ≤5s
Fork Carriage Backward Tilt Time ≤4s
Boom Luffing Range -3° ~ 72°
Fork Carriage Tilt Range (boom horizontal) -14° ~ 112°
Performance Parameters
Max. Travel Speed ≥27km/h
Max. Traction Force ≥60kN
Min. Turning Radius (outer tire) ≤4200mm
Min. Ground Clearance 370mm
Wheelbase 3050mm
Track Width 1960mm
Frame Lateral Oscillation Angle ±10°
Engine
Model YCF36100
Rated Power 74kW
Rated Speed 2200r/min
Tire Specification 400/80-R24
Item Parameter
Total Weight (with forks) 12000kg
Overall Dimensions (L×W×H) 6305×2420×2550mm
Rated Capacity 4000kg
Load Center Distance 600mm
Max. Lifting Height (to fork upper surface) 17.55m
Rated Capacity at Max. Lifting Height 2500kg
Max. Forward Reach (boom horizontal, from load center to tire front) 13.4m
Rated Capacity at Max. Forward Reach 750kg
Working Device
Luffing Time (Lifting) ≤18s
Luffing Time (Lowering) ≤17s
Boom Extension Time ≤23s
Boom Retraction Time ≤22s
Fork Carriage Forward Tilt Time ≤5s
Fork Carriage Backward Tilt Time ≤4s
Boom Luffing Range -3° ~ 72°
Fork Carriage Tilt Range (boom horizontal) -14° ~ 112°
Performance Parameters
Max. Travel Speed ≥27km/h
Max. Traction Force ≥60kN
Min. Turning Radius (outer tire) ≤4200mm
Min. Ground Clearance 370mm
Wheelbase 3050mm
Track Width 1960mm
Frame Lateral Oscillation Angle ±10°
Engine
Model YCF36100
Rated Power 74kW
Rated Speed 2200r/min
Tire Specification 400/80-R24
